Product introduction :

   This driver has built-in hardware dead zone control function. The motor is safer, more stable and reliable when running forward and reverse with high current! There is also an undervoltage lockout output function! The measured continuous output is 450W (36V 15A). you get what you pay for! Welcome to test!

   This driver board can not only simulate control, but also directly accept microcontroller IO driver! This system not only can simulate control, but also has good protection functions.

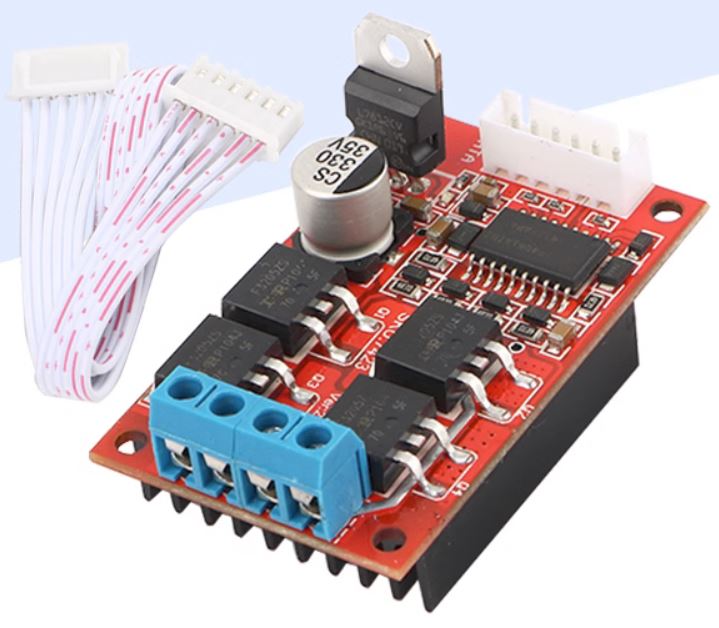

(1) Using imported full-bridge driver chip + low-pass internal resistance 110A NMOS driver tube, it can easily realize motor braking and forward and reverse rotation.

(2) The working frequency of the chip is as high as 600KHz, which can effectively solve the problem of high motor noise and heat caused by MC33886 and VNH3SP30. At the same time, the driving capability has been significantly improved and the response speed is fast. The performance of this driver is not comparable to that of L298, IR2104, MC33887 and other motor driver chips

(3) Two-way PWM input, the duty cycle can be 0-100%, which is beyond the reach of ordinary drivers. It has instant braking ability and helps you easily achieve precise control of the whole speed.

(4) It can adapt to a wider working voltage of 10.5-36V, which is suitable for robots or car model competitions directly powered by lithium batteries.

(5) Built-in logic buffer isolation circuit. Support PLC and various types of 3V or 5V single-chip IO port direct control, and can also control motor brake and forward and reverse through analog voltage input.

(6) The control is very simple, convenient and easy to use. It only needs to connect 3 input lines to control the motor braking and forward and reverse rotation.

(7) The chip has a built-in dead-time hardware control, which can effectively protect the H-bridge when the motor frequently changes direction, and avoid direct damage, so that the software programming is simpler.

(8) The working frequency of the chip is as high as 600KHZ, and it is suitable for hollow-core motor drive, with low noise and low heat generation.

Module parameters:

• Module nature: H-bridge brushed DC motor drive module, suitable for high-power DC motors of 3-36V
• Scope of application: high-power DC motor drive. Occasions requiring wide input voltage (11-36V), such as various controls such as large cars and robots.
• Driving voltage: DC 11-36V input DC voltage (forbid input AC power)
• Output current: rated continuous output 24V 15A 360W below without radiator, maximum 36V 15A 450W
• Output power: natural cooling rated 450W, measured when the power supply is 36V 15A
• Working temperature: industrial grade (-40℃ to +85℃) Full load temperature: 45℃
• Weight: 293g

Features:

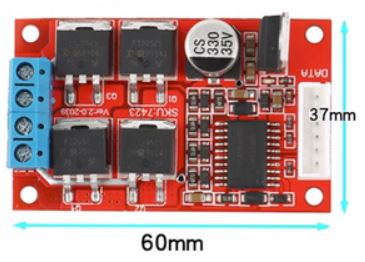

• Small size, only 6.6cm×3.8cm, the total height is 2.8cm after pasting 1cm thick for heat dissipation
• Support voltage range 10-36V, undervoltage protection, independent power supply up to 50V
• The maximum continuous load current is 20A (with a simple radiator attached), and the short-term peak current is 110A
• Three-wire control for speed regulation, forward and reverse rotation and braking
• Support full PWM, you can directly use the buttons to control forward and reverse, the effective range of PWM is 0%~100.0%
• It can be directly matched with PLC and 3.3V 5V MCU IO ports to directly control the built-in interface level buffer function without worrying about damaging the MCU IO.

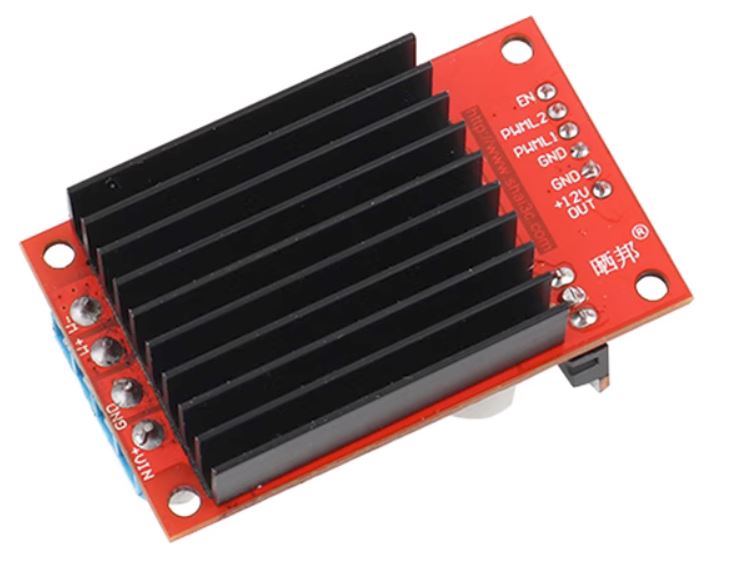

Product use:

• EN: enable terminal
• PWML1: forward control
• PWML2: Invert Control
• GND: power ground

Output:

• VIN+: Drive board power supply input positive pole 10V-36V
• GND: Negative pole of power supply input of driver board
• M+: connect the motor cable
• M-: connect the motor cable

The following are instructions for using the two control methods:

Level control method:

EN=0 PWML1=0 PWML2=1 Motor rotates forward

EN=0 PWML1=1 PWML2=0 Motor reverses

EN=0 PWML1=1 PWML2=1 Motor brake

EN=1 PWML1=1 PWML2=1 Motor free

PWM control method:

EN=0 PWML1=Duty cycle adjustable PWM signal PWML2=1 The motor rotates forward (the speed can be adjusted by changing the duty cycle)

EN=0 PWML1=1 PWML2=Duty cycle adjustable PWM signal motor reverse rotation (speed can be adjusted by changing the duty cycle)

EN=0 PWML1=1 PWML2=1 Motor brake

EN=1 PWML1=1 PWML2=1 Motor free
